BOTA, POTA, SOTA, WWFF navdušenci!
WWBOTA (World Wide Bunkers on The Air), POTA (Parks On The Air), SOTA (Summits On The Air), WWFF (World Wide Flora and Fauna) so mednarodno uveljavljeni programi. Spodbujajo licencirane radioamaterje k delovanju v naravi iz območji bunkerjev oziroma zaklonišč in utrdb, delovanju znotraj naravnih parkov, iz planinskih vrhov, iz varovanih flora in fauna območji. Operaterji, ki iz območji bunkerjev, v parkih, na vrhovih ali iz varovanih območji vzpostavljajo zveze se imenujejo aktivatorji drugi operaterji, ki jih kontaktirajo pa lovci.
Na S50CLX telnet DXClustru sem implementiral zbiranje spotov iz programov BOTA, POTA, SOTA, WWFF ki niso del klasičnega telnet DXCluster omrežja (botacluster, potaapp, sotawatch, wwffwatch). Tako pridobljeni spoti so označeni z oznakami [-BOTA-] [-POTA-] [-SOTA-] [-WWFF-]. V polju za komentar takšen spot nosi:
BOTA:
– Mednarodna BOTA referenčna številka; primer: B/S5-0513
– Način dela Mode; primer: CW
– Ime BOTA bunkerja; primer: Gorje Utrdba 1 – utrdba,bunker
POTA:
– Mednarodna POTA referenca; primer: SI-0831
– Način dela Mode; primer: FM
– Ime POTA reference; primer: Preval Vrh Ravni
SOTA:
– Mednarodna SOTA referenčna številka vrha; primer: S5/CP-002
– Način dela Mode; primer: SSB
– Ime SOTA vrha, nadmorska višina, št. točk; primer: Porezen, 1630m, 8 points
WWFF:
– Mednarodna WWFF referenčna številka; primer: S5FF-0262
– Način dela Mode; primer: FT8
– Ime WWFF varovanega območja; primer: Cerkno – Soteska Potoka Zapoška
Filtriranje
Z ustreznimi nastavitvami se lahko sprejema točno želene DX spote, to pa dosežemo z uporabo spodnjih filtrov. Za spremembo obstoječega filtra le tega preprosto prepišemo z novim ukazom. Vsak ukaz (KREPKO oblikovano besedilo) moramo vpisati v novi vrstici. Vnos potrdimo s tipko ENTER.
– za sprejemanje samo BOTA spotov, ukaz: ACC/SPOTS INFO -BOTA-
– za sprejemanje samo POTA spotov, ukaz: ACC/SPOTS INFO -POTA-
– za sprejemanje samo SOTA spotov, ukaz: ACC/SPOTS INFO -SOTA-
– za sprejemanje samo WWFF spotov, ukaz: ACC/SPOTS INFO -WWFF-
– za sprejemanje POTA in SOTA spotov izvedemo ukaz: ACC/SPOTS INFO -POTA- OR INFO -SOTA-
– za sprejemanje BOTA, POTA, SOTA in WWFF spotov je ukaz: ACC/SPOTS INFO -BOTA- OR INFO -POTA- OR INFO -SOTA- OR INFO -WWFF-
CLEAR/SPOTS ALL ukaz odstrani vse postavljene filtre in S50CLX nam posreduje vse DXCluster ter opcijsko RBN (SET/SKIMMER <mode>) spote.
V primerih, ko ne želite prejemati BOTA, POTA, SOTA in WWFF spotov, naprimer v tekmovanju, kot prvi filter pred vsemi ostalimi uporabite ukaz. REJ/SPOTS 1 INFO -BOTA- OR INFO -POTA- OR INFO -SOTA- OR INFO -WWFF-
Poleg tega lahko iščemo po bazi spotov s tekstom, ki ga vsebuje polje za komentar. Na primer, če želimo preveriti DX spote za nedavno aktivacijo iz POTA parka z referenčno številko SI-0772 izvedemo ukaz SH/DX INFO SI-0772
S50CLX DXSpider DXCluster
Posredovanje DX spotov temelji na DXSpider DXCluster program algoritmu validacije in normalizacije, zavrnitvi dvojnih spotov ter zagotavljanju kakovostnih spotov ob vse bolj pogostih zlonamernih napadih na globalno radioamatersko DXCluster omrežje. Nekaj spotov se podvaja (enak callsign in frekvenca) s POTA spoti kjer je največja frekvenca poslanih spotov. V teh primerih se uporabniku posreduje prvi, ki prispe v sistem ne glede na oznako. Starost S50CLX dxcluster podvojenih, dvojnih spotov je 300 sekund.
S50CLX DXCluster je preko telnet protokola dosegljiv na naslovu s50clx.infrax.si vrata 41112
Če potrebuješ brezplačno prilagodljivo aplikacijo, ki uspešno zajema označene spote je DXLab‘s SpotCollector program prava izbira.
Moj majhen prispevek promociji outdoor aktivnosti v hamradiu, hvala ker delite. 🙂
73 Danilo S50U sys S50CLX DXCluster
**********************************
BOTA, POTA, SOTA, WWFF enthusiasts!
WWBOTA (World Wide Bunkers on The Air), POTA (Parks On The Air), SOTA (Summits On The Air), WWFF (World Wide Flora and Fauna) are internationally renowned programmes. They encourage licensed radio amateurs to operate outdoors within nature parks, mountain peaks or protected areas. Operators making contacts from bunkers, parks, from summits or from protected flora and fauna areas are called activators and operators who are contacted are called hunters.

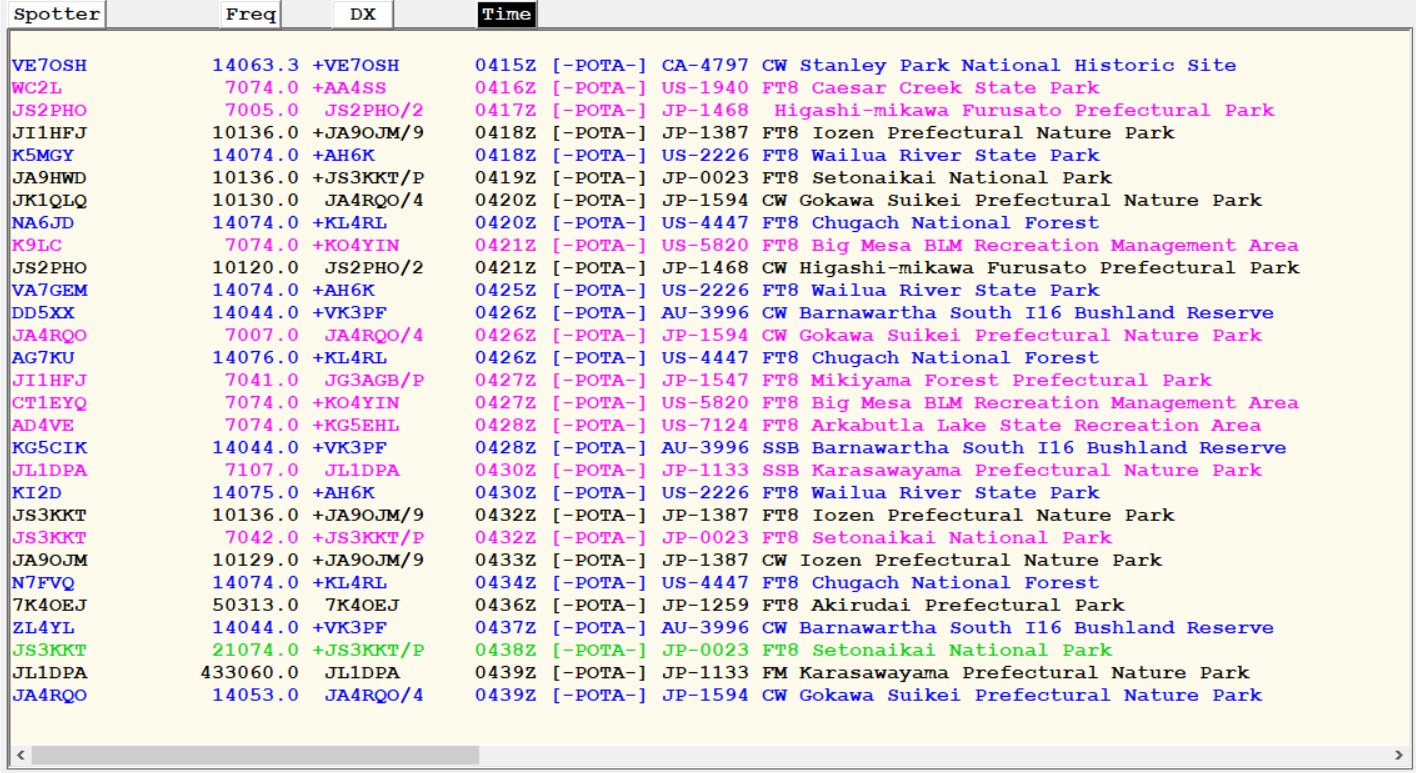

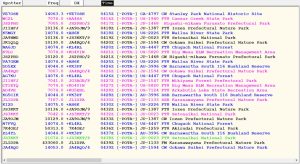

On the S50CLX telnet DXCluster I implemented the collection of spots from BOTA, POTA, SOTA, WWFF that are not part of the classical telnet DXCluster network (botacluster, potaapp, sotawatch, wwffwatch). Such spots are tagged with [-BOTA] [-POTA-] [-SOTA-] [-WWFF-] respectively. In the comment field a spot tagged as such carries:
BOTA:
– International BOTA reference number, example:: B/S5-0513
– Mode of operation, example: CW
– BOTA bunker name, example: Gorje Utrdba 1 – utrdba,bunker
POTA:
– International POTA reference number, example: SI-0831
– Mode of operation, example: FM
– POTA reference name, example: Preval Vrh Ravni
SOTA:
– International SOTA peak reference number; example: S5/CP-002
– Mode of operation; example: SSB
– SOTA summit name, altitude, points; example: Porezen, 1630m, 8 points
WWFF:
– International WWFF reference number; example: S5FF-0262
– Mode of operation; example: FT8
– WWFF reference name, example:: Cerkno – Soteska Potoka Zapoška
Filtering
With the right settings, the exact DX spots you want can be received and this is achieved using the filters below. To change an existing filter, simply overwrite it with a new command. Each command (BOLD formatted text) must be entered on a new line. Confirm the entry by pressing ENTER.
– for receiving only BOTA spots, command: ACC/SPOTS INFO -BOTA-
– for receiving only POTA spots, command: ACC/SPOTS INFO -POTA-
– for receiving only SOTA spots, command: ACC/SPOTS INFO -SOTA-
– for receiving only WWFF spots, command: ACC/SPOTS INFO -WWFF-
– for receiving POTA and SOTA spots execute the command: ACC/SPOTS INFO -POTA- OR INFO -SOTA-
– for receiving only BOTA, POTA, SOTA and WWFF spots execute the command. ACC/SPOTS INFO -BOTA OR INFO -POTA- OR INFO -SOTA- OR INFO -WWFF-
The CLEAR/SPOTS ALL command removes all set filters and the S50CLX passes us all DXCluster and optionally RBN (SET/SKIMMER <mode>) spots.
In cases where you do not want to receive BOTA, POTA, SOTA, WWFF spots e.g. in a contests, use the command as the first filter before all others. REJ/SPOTS 1 INFO -BOTA- OR INFO -POTA- OR INFO -SOTA- OR INFO -WWFF-
In addition, you can search the database of spots with the text contained in the comment field. For example to check DX spots for a recent activation from a POTA park with reference number SI-0772 execute the command SH/DX INFO SI-0772
S50CLX DXSpider DXCluster
Spots forwarding is based on the DXSpider DXCluster software validation and normalisation algorithm, rejecting duplicates and ensuring quality spots. All this in the face of increasingly frequent malicious attacks on the global amateur DXCluster network. Some spots are duplicated (same callsign and frequency) with POTA spots where the maximum frequency of spots sent. In these cases the user is forwarded the first one that arrives in the system regardless of tagging. The age of the S50CLX dxcluster duplicated, double spots is 300 seconds.
The S50CLX DXCluster can be reached via telnet at s50clx.infrax.si port 41112
If you need a free, flexible application that successfully captures such tagged spots is DXLab‘s SpotCollector right choice for you.
My small contribution to the promotion of outdoor activities in hamradio. Spread the news, thanks. 🙂
73 Danilo S50U sys S50CLX DXCluster
